    Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS

    Ask Lasest Price
    Model Number : ZTAC
    Certification : CE
    Price : on discuss
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 45 working days after receiving deposit
    Brand Name : ZTRFM
    • Product Details
    • Company Profile

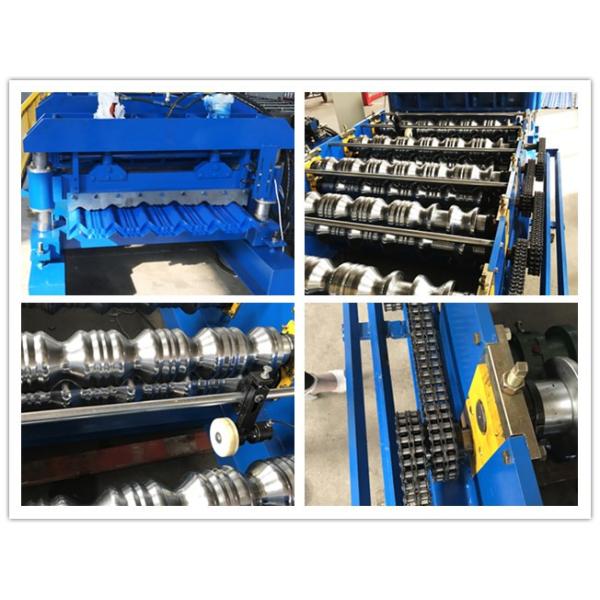

    Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS

    Metal Roof Glazed Tile Roll Forming Machine Corrugated Steel Sheet BV / SGS


    Machine descriptionQuantityDelivery timeContainer type

    roll forming machine prices

    1SET

    45 working days

    20GP


    Components of roll forming machine

    No.NameUnitQty
    1Manual decoilerset1
    2Main forming machineset1
    3PLC control systemSet1
    4Hydraulic pump stationset1
    5post cutset1
    6electric motorset1
    7output tableset1

    Product Description
    description of tile roll forming machine
    Machine descriptionQuantityDelivery timeContainer type
    tile roll forming machine1 SET40working days after depositone 40GP

    The production process of tile roll forming machine

    Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.


    the specification of tile roll forming machine

    nametile roll forming machine
    materialColor steel sheet
    thickness0.3-0.8mm
    Coil inner diameter450-550mm
    Max coil out diameter1300-1600mm
    Max coil width1250mm
    Carrying capacity5T
    Forming steps13rollers
    Shaft diameter80 mm
    Design typepillar structure
    Roller material45 # steel chrome plating chromium
    Shaft material40Cr steel
    Work speed4-12m/min
    Transporby chain
    Type of cuttinghydraulic
    Cutting tolerancewhthin 1mm
    CutterGcr12
    Material of bladesCr12 quenched
    PLCDelta
    CounterOmion
    Voltageas required
    Dimension7000x1500x1910mm
    WeightAbout 5 T
    Workers1-2 only
