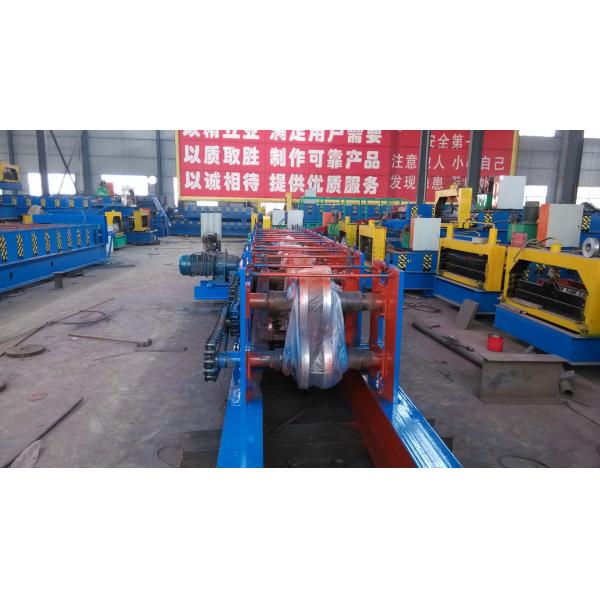

Motor Interchangeable Roll Forming Machine For Purlin C / Z 100-300 MM

1. Introduction:

C or Z shape purline forming machine can produce many sizes of C or Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C or Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.

2. Main Technical Specification:

Dimension: 8000mmx800mmx1200mm

Total weight: 6 tons

Controlling system: PLC

Main machine power:11kw

Hydraulic station power:4kw

Quantity of stands: 12 stations

Working speed: 8000-10000mm/min

Hydraulic pressure:18-20Mpa

Material of roller die: GCr15 bearing steel with quenched treatment.

Material of Cutting die: Cr12 mould steel with quenched treatment.

Product range: all types from 60-300mm

3. Sutiable Material for Production

C or Z mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1-3mm. It is roll formed by C or Z shape roll forming machine.

4. Working Flow

Decoiling the sheet--sheet Guiding--coil strip leveling--roll forming--punching for horizontal hole--punching for vertical hole--measure length--cutting the panel--panel to supporter.

5. Product Feature and Usage

The products of C or Z purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

6. Applicable Area:

Door frame, rail, angle, pallent rack, pack post, swage beam panel, glass wool panel, hosit rail, hand rail, car molding, C-channel fire shatter, M bar, U-channel.

we can manufacture contains: roofing sheet machine, CZ purlin machine, light steel gauge machine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machines, rack system machines, floor decking machine, stone coated steel roofing sheet machine as so on. The company has passed ISO9001 quality control system certification, European CE safety certification, North American CAS electric certification, and has instill the concept “time is money, quality is life, customer is the king” into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowadays our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients.
