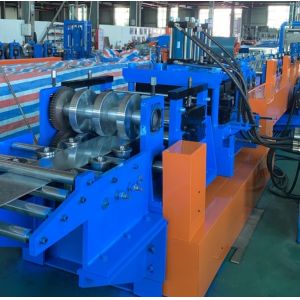

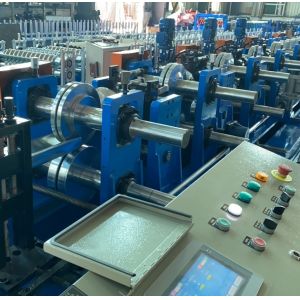

Purlin/Structural Steel Profile for Eave Struts making machine

Purlin/Structural Steel Profile for Eave Struts making machine is designed to make metal roof purlins which are most commonly used in metal building systems, where Z-shapes are utilized in a manner that allows flexural continuity between spans. Eave Struts are secondary steel framing members used for support at eaves and high side peaks. Single and double slope are available up or down. Here we take some drawing profiles to show you how the rolling forming machine is designed:

Purlin/Structural Steel Profile Application:

Structural Steel Profile for Eave Struts making machine:

Take this profile for example:

Features of Purlin/Structural Steel Profile for Eave Struts making machine:

1. Sizes are PLC controlled and frame could be adjusted along the shaft.

2. For the different angle of adjusting, servo motor control. And for the angle adjustment also control controlled by PLC.

3.For the leveling part, as the coil down from the decoiler, it is not flat.Use the big leveling rollers to make the sheet plate and then come to the punching part. The punching hole distance from length adjustable by PLC. From the width, you need to adjust by handrail. As to how many types holes you want to punch, we can design according to your requirements.

4.Now come to the shearing part. The shearing parts could be adjusted according to the profile width and height. But for the angle, need to be made the further adjustment.

Common questions: Lots of customers want to make this Steel Profile for Eave Struts making machine together with CZ purline machine. It is possible but the customer should be super professional about the machine adjustment. Or else better we make the Eave Struts purline only with different width and height, that will be super easier to use.
